Dead pixel failure repairs on Mercedes dashboard instrument cluster

RIBBON CABLES


Dead pixel failure repairs on Mercedes
dashboard instrument cluster


Mercedes E class W210, C class W202, Vito and A class speedometers all have the common dead / fading / disappearing pixels on the instrument cluster, on the LCD display that shows the outside temperature and the time, some cases the milage and gears. The pixel problem lies with the ribbon cable / flat cable that connects the LCD display to the circuit board of the instrument cluster. The pictures below show the instrument cluster's LCD display before and after the ribbon / falt cable replacement (just an example of several board computer / dashboard instrument cluster types):

Mercedes dead pixel repair KIT
Mercedes pixel repair on LCD display

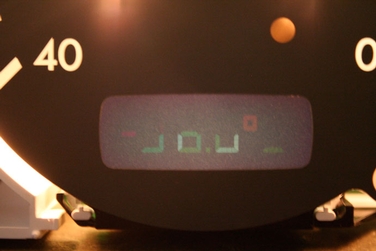

before pixel repairs - visible pixel failure

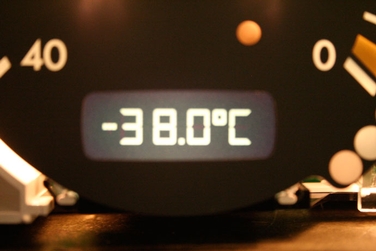

after pixel failure repairs - new ribbon cable applied


You will find ribbon cables / flat cables for the following models / units below:

--> Mercedes E class speedo with dead LCD pixels
--> Mercedes C class speedometer with dead or fading CLD display
--> Mercedes A class instrument cluster with missing pixels
--> Mercedes Vito dashboard instrument cluster with LCD display failure

If you see "bond-less" in the item description, then you buy a ribbon cable which does not have to be soldered in - in can be replaced simply without a soldering iren or other special tools.
If you see "heat seal connector", then you will also need a soldering iron, and a "T head" to solder the ribbon cable in.


Mercedes A class ribbon cable for pixel repairs
Mercedes E class W210 LCD pixel repairs
Mercedes C class dashboard speedo LCD pixel repair KIT
Mercedes VITO dash speedo LCD dead pixels

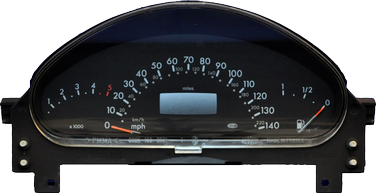

A Class

E Class

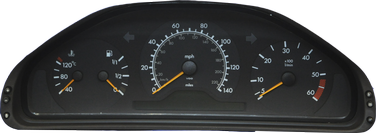

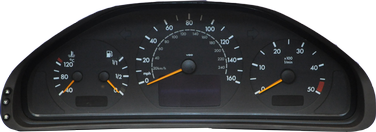

C class

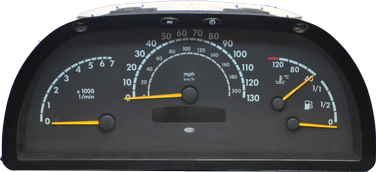

Vito

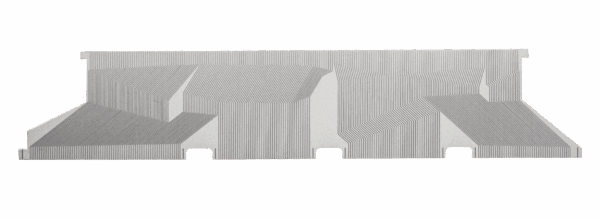

Mercedes E Class before 2000 - old version ribbon cable
Mercedes E Class before 2000 - old version ribbon cable
# 254-034

Heat Seal connector - soldeing involved

This is a heat sealable ribbon cable - you need to buy a soldering T-head to do the replacement job. At this particular replacement job soldering is included.
€ 27.00
Add to Cart
Soldering tip - "T" HEAD
Soldering tip - "T" HEAD
# 300-001

T head for heat sealable ribbon cable soldering. Soldering iron is not included - you get what you see on the picture.
€ 15.00
Add to Cart

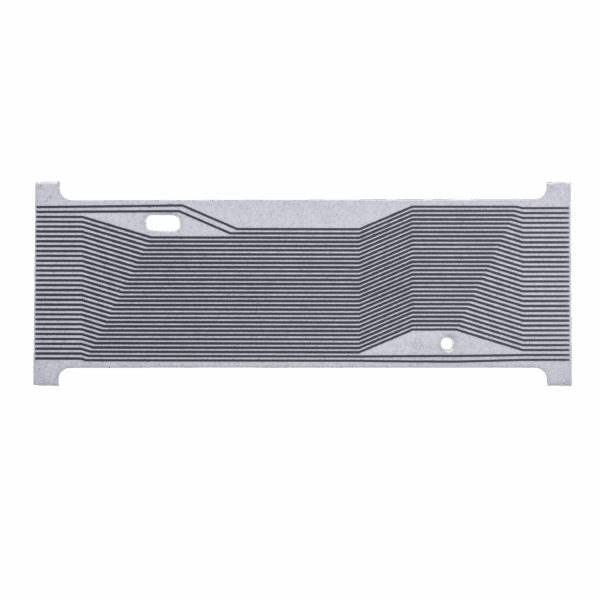

Mercedes Vito ribbon cable
Mercedes Vito ribbon cable
# 254-029H

Heat Seal connector - soldeing involved

This is a heat sealable ribbon cable - you need a slodering tip T HEAD - to replace the cable. This will fix the faulty / fading / completely dead pixels on the LCD display.
€ 27.00
Add to Cart
Mercedes A class ribbon cable / flat cable
Mercedes A class ribbon cable / flat cable
# 254-030H

Heat Seal connector - soldeing involved

This is a heat sealable ribbon cable - you need a slodering tip T HEAD - to replace the cable. This will fix the faulty / fading / completely dead pixels on the LCD display.
€ 27.00
Add to Cart

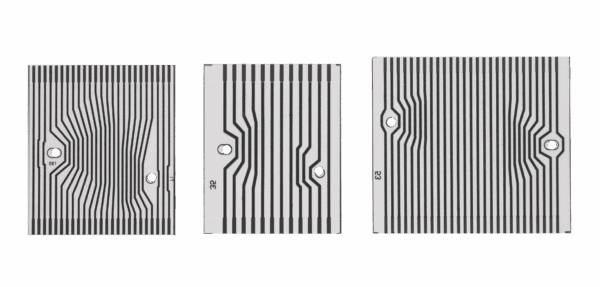

Mercedes C Class ribbon cables (3pcs)
Mercedes C Class ribbon cables (3pcs)
#254-009

- Bond-less silver cable - no soldering involved
- Fits all C class instrument cluster models which have 3 separate displays.
€ 17.00
Add to Cart
Mercedes E Class 2000+ ribbon cables (2pcs)
Mercedes E Class 2000+ ribbon cables (2pcs)
#254-008

- Bond-less silver cable - no soldering involved
- Fits all C class instrument cluster models which have 3 separate displays.

Bond-less silver cable - no soldering involved

Fits all E class W210 models with AUTOMATIC AND MANUAL GEARBOX after 2000. Content of the set is 2 ribbon cables:

- 1 for the TIME display
- 1 for the TEMP. Display

€ 17.00
Add to Cart
Vito Viano ribbon cable
Vito Viano ribbon cable
#254-068

- brand new ribbon cable for Vito/Viano
€ 27.00
Add to Cart

Afterword:

Dead LCD pixels, fading LCD pixel on the instrument cluster are quite bad looking parts of a good car’s interior, so it is understandable that you may want to get it fixed. Replacement of the complete unit is quite expensive, that is why we try to encourage people to get it fixed by a professional on half price, or do the ribbon cable replacement at home on tenth price. As we sell quality flexible ribbon cables, bulbs / lamps or DIY repairs and for professionals. This very common pixel failure is known on Mercedes dashboard instrument cluster, it is also called speedometer or speedo, typically on Mercedes A C and E class, and Mercedes Vito.We have 3 important remarks to all those who already ordered the spare parts for their cars: --> 1. Read the complete instructions before starting the ribbon cable replacement.--> 2. Technical support is always available - on the phone, or via E-mail – please feel free to ask at any time!--> 3. Always feel free to live with the opportunity mentioned on the last page of the instructions booklet!

---------------------------------------------------------------------------------------------------------------
